Introduction to QGKZA-3 simple AC charging pile controller

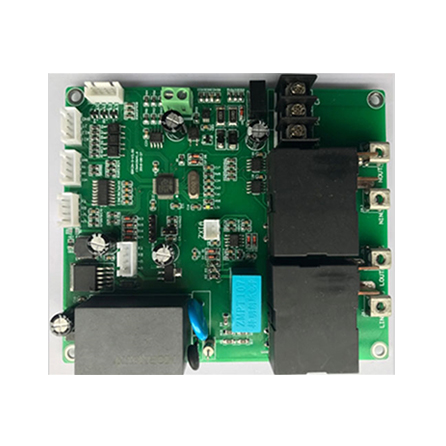

QGKZA-3 is a simple AC charging pile core control board that can control a single gun and meets the new national standard. Specific functional configuration

As follows: 1. Hardware configuration

1) Power supply: AC220V±20%

2) Control output: 2 dry contact outputs, shock capacity 30A, can directly drive 3.5kw/7.0kw charging gun, or can drive AC220V contactor, and the contactor controls the charging gun (recommended for 7.0kw).

3) Indicator light: 3-way indicator light, 12v output, current 20ma, with current limiter to prevent short circuit burnout. The individual lights are: running, charging, and fault indicator lights.

4) CP signal: 1 CP signal output, meeting the national standard 12v, 9v, 6v PWM output, the pulse width can be set to 3.5KW

or 7KW.

5) Emergency stop: Emergency stop charging button status, 12v switching value collection.

6) Touch screen: human-machine interface operation, standard 4.3-inch screen for single charge, power supply 12v400ma output, communication RS232. Others can be customized.

7) Electric meter: It can be connected to 1 electric meter. The address of the electric meter can be set. The electric meter interface is RS485.9600.E.8.1, which can be set. The protocol meets the national standard.

DLT645-2007 single-phase electricity meters can be used.

8) Voltage measurement: The control board integrates 220v AC voltage sampling, which can be used for voltage measurement and protection.

9) Current measurement: The control board integrates a 0~40A AC current sampling interface and uses a through-core micro transformer, which can be used for current measurement and protection.

10) Card reader: An external IC contactless card reader is used for card settlement.

11) GPRS communication: Use the card reader interface to network with the backend through GPRS, and the communication interface is RS232.

12) Ethernet: Backup communication interface, networked with the backend. Standard RJ45 network interface.

Note: The above are the functions of the entire control panel. When making a simple charging pile, you can choose to use some of them. Specifically,

The various options are as follows:

A. Optional indicator lights, buttons, voltage sampling, and current sampling. (Choose this type for portable charging piles)

B. Optional display screen and electric meter measurement.

C. Optional card reader and indicator light.

D. Optional display screen, electricity meter, and Ethernet can be started by scanning the QR code on WeChat.

E. Optional display screen, electric meter measurement, GPRS (using card reader interface), which can be started by scanning the QR code on WeChat APP.
