Introduction to QGZXC16 electric two-wheeled vehicle charging pile control board

Model: QGZXC16-NEI Note: Network port communication

Model: QGZXC16-GPRS Note: GPRS communication

(Can be customized according to needs.)

(Terminal diagram)

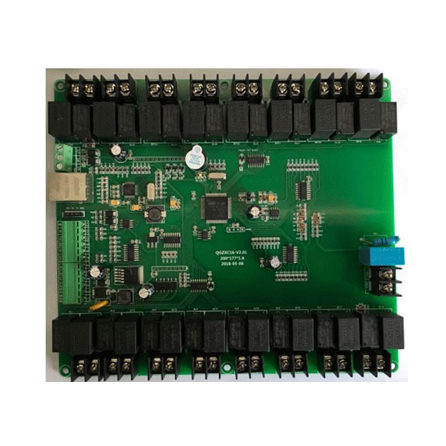

As shown in the above set of pictures, QGZXC16 is the core control board for electric two-wheeled vehicle charging piles. It controls 16 outputs and can meet the control requirements of electric two-wheeled vehicle charging piles.

1. Hardware configuration

1) Power supply: DC12v+0.5v 2A. 2) Output: 16 channels 220V 10A

3) Standby power: less than 4W

4) Power indicator light: power indicator.

5) Charging indicator light: charging indication.

6) Fault indicator light: fault indication.

7) Card reader USB interface: external IC contactless card reader for settlement. Also used for controller local upgrade program.

8) Touch screen: human-machine interface operation, standard 4.3-inch screen, communication RS232. Others can be customized.

9) Ethernet: Backup communication interface, networked with the backend. Standard RJ45 network interface.

10) Electric meter: The electric meter address can be set, the electric meter interface is RS485.9600.E.8.1, and all three-phase electric meters whose protocol meets the national standard DLT645-2007 can be used.

11) Extension-standby: Reserve the interface for expansion and standby.

12) AC measurement input: measure vehicle charging voltage.

2. Software configuration

1) Human-machine interface

A) 4.3-inch industrial touch screen. (5-inch and 7-inch screens can be customized according to requirements)

B) Charging voltage, charging current, energy measurement information, account balance, consumption amount, charged time, and various status inputs.

C) Equipped with power supply, running charging and fault indicator lights.

D) Administrator parameter settings require a password to enter.

E) Display nearly 50 fault alarm information records, which will not be lost when power is lost.

F) Status display and text reminder during charging to prevent personnel from misoperation.

2)Charging function

A) Power-off charging record saving function, charging information will not be lost when power is lost.

B) With the function of saving charging records when disconnected from the network, the charging information will not be lost when the network is disconnected, and the settlement information will continue to be uploaded when the network is connected.

E) Record 100 pieces of charging information in a loop. It will not be lost in case of power outage and can be uploaded to the background.

F) Supports swiping card to start charging.

G) Support scanning QR code to start charging.

3) Protection fault alarm function

A) AC input overvoltage, undervoltage, overcurrent, short circuit and leakage protection, some protection settings can be set.

4) Payment function

A) Support contactless IC card swipe payment.

B) Pay by scanning the QR code on the mobile APP.

C) Support WeChat scan code payment.

5) Measuring function

A) Electric meter measurement.

6)Background communication function (protocol can be customized)

A) Supports Ethernet communication (standard configuration).

B) Support RS485 communication (optional).

C) Support RS232 communication (standard configuration).

D) Support GPRS 2g/3g/4g communication or WIFI (optional).
